WQ系列潜水排汚泵

WQ/JYWQ/WQF 污水污物潜水电泵技术参数流量Q：7～1500m3/h扬程H：4～60m材质：铸铁/不锈钢应用范围市政工程、城市污水集中处理、工业商业污水排放、住宅区的污水排水建筑工地、宾馆、学校、饭店勘探、矿山、农村沼气

产品信息

产地中国 » 广东 » 惠州市

结算币种人民币

所属分类 WQ系列潜水排汚泵

上架时间 2021-12-13

立即咨询

电话咨询收藏产品

正品保障

快速交付

专业支持

产品介绍

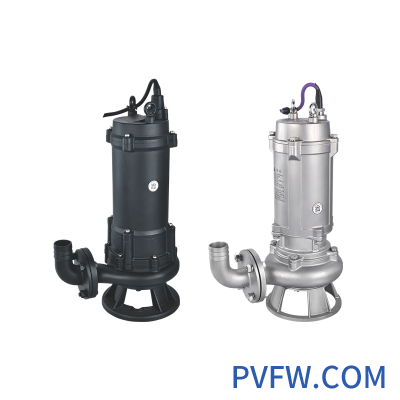

WQ/JYWQ/WQF 污水污物潜水电泵

技术参数

流量Q：7～1500m3/h

扬程H：4～60m

材质：铸铁/不锈钢

应用范围

市政工程、城市污水集中处理、

工业商业污水排放、住宅区的污水排水

建筑工地、宾馆、学校、饭店

勘探、矿山、农村沼气池、河塘清淤等

过滤给水和冷凝系统

使用条件

介质温度≤40℃

介质PH值4～10

介质密度<1200kg/m3

输送固体物容积比<2%

详细规格

产品选型（）

NO.	型号	流量 (m³/h)	H (m)	N (r/min)	P (kw)	η (%)
1	200WQ595-38-90	55	22	2900	7.5	68
2	200WQ485-31-75	70	52	2900	18.5	65
3	200WQ435-19-37	40	12	1450	3	65
4	200WQ375-16-30	60	15	960	5.5	63
5	250WQ900-38-160	55	11	960	4	63
6	250WQ1000-50-200	50	8	960	3	64
7	250WQ455-8-18.5	120	50	1450	37	62
8	250WQ500-10-22	100	32	1450	18.5	64
9	250WQ600-12-37	90	25	1450	15	66
10	250WQ800-30-110	80	19	1450	11	66
11	250WQ650-20-75	80	13	9960	5.5	68
12	250WQ500-17-45	70	10	960	4	68
13	300WQ800-8-30	150	52	1450	45	64
14	300WQ900-10-37	130	30	1450	18.5	70
15	300WQ1500-36-200	1100	24	1450	15	74
16	300WQ1400-30-160	100	126	1450	11	66
17	300WQ1050-27-132	80	8	960	4	72
18	300WQ1550-48-315	120	12	960	7.5	70
19	300WQ950-20-90	100	9	960	4	70
20	300WQ850-15-55	150	16	960	15	70
21	350WQ2000-30-220	220	46	1450	55	70
22	350WQ1800-24-185	170	26	1450	22	72
23	350WQ1700-17-132	150	20	1450	15	72
24	350WQ1500-12-90	190	34	1450	37	72
25	350WQ1300-11-75	200	10	960	11	74
26	350WQ1100-8-37	150	8	960	7.5	72
27	350WQ2500-38-380	250	16	960	18.5	77
28	400WQ1500-8-55	190	13	960	11	78
29	400WQ2700-20-215	400	50	1450	90	78
30	400WQ2400-16-160	340	37	1450	90	78
31	400WQ2000-12-110	100	26	1450	37	74
32	400WQ1700-10-75	260	20	1450	30	73
33	500WQ3900-27-430	360	15	960	15	76
34	500WQ3550-24-380	280	7	960	11	70
35	500WQ3000-18-220	360	13	960	22	77
36	500WQ2700-16-185	600	45	1450	110	82
37	500WQ2600-14-160	595	38	1450	90	80
38	600WQ4800-23-400	485	31	1450	75	78
39	600WQ5660-25-500	435	19	960	37	83
40	600WQ4360-19-315	375	16	960	30	82
41	600WQ3900-15-220	900	38	1450	160	75
42	600WQ4500-16-280	1000	50	1450	200	80
43	600WQ2800-12-200	455	8	960	18.5	71
44	50WQ/S402-1.5	500	10	960	37	74
45	50WQ/S401-2.2	600	12	960	37	74
46	50WQ/S202-3	800	30	960	110	80
47	50WQ/S201-4	650	20	960	72	74
48	65WQ/S601-1.5	500	17	725	45	77
49	65WQ/S403-2.2	800	8	960	30	74
50	65WQ/S206-5.5	900	10	960	37	75
51	65WQ/S205-7.5	1500	36	1450	200	81
52	65WQ/S204-11	1400	30	1450	160	78
53	65WQ/S203-15	1050	27	960	132	83
54	80WQ/S406-3	1550	48	1450	315	78
55	80WQ/S405-4	950	20	960	90	80
56	100WQ/S605-2.2	850	15	725	55	81
57	100WQ/S604-3	2000	30	1450	220	81
58	100WQ/S603-4	1800	24	960	185	88
59	100WQ/S414-5.5	1700	17	960	132	86
60	100WQ/S413-7.5	1500	13	725	90	85
61	100WQ/S412-11	1300	11	725	75	84
62	100WQ/S411-15	1100	8	725	37	76
63	100WQ/S410-18.5	2500	38	1450	380	83
64	100WQ/S409-22	1500	8	725	55	78
65	100WQ/S408-30	2700	20	960	215	86
66	100WQ/S407-37	2400	16	960	160	83
67	VSP180F	2000	12	725	110	82
68	VSP450F	1700	10	725	75	82
69	VSP750F	3900	27	960	430	83
70	VSP1100F	3550	24	960	380	81
71	ASC-300T	3000	18	725	220	82
72	ASC-500T	2700	16	725	185	82
73	WQ10-10-0.75	2600	14	725	160	80
74	WQ7-15-1.1	4800	23	730	400	87
75	WQ15-7-1.1	5660	25	730	500	87
76	WQ25-10-2.2	4360	19	730	315	84
77	WQ15-15-2.2	3900	15	580	220	86
78	WQ9-22-2.2	4500	16	580	280	87
79	WQ35-7-2.2	3800	12	490	200	86
80	50WQ15-18-2.2W(I)	6	20	2850	1.1	30.3
81	50WQ15-20-2.2(I)	7	15	2850	1.1	58.3
82	50WQ15-20-2.2/QG(I)	8	15	2850	1.1	36.4
83	50WQ15-25-3(I)	8	15	2850	1.1	36.4
84	50WQ15-25-3(JY)(I)	9	5	2800	0.37	33.1
85	50WQ15-25-3W(I)	9	7	2850	0.55	33.6
86	50WQ15-27-3(I)	9	22	2880	2.2	50.7
87	50WQ15-28-3/QG(I)	10	7	2850	0.55	33.6
88	50WQ15-32-4(I)	10	7	2850	0.55	38.9
89	50WQ15-32-4JY(I)	10	7	2850	0.55	38.9
90	50WQ15-38-5.5JY(I)	10	8	2850	0.75	36.5
91	50WQ15-40-5.5(I)	10	10	2850	0.75	51.5
92	50WQ18-32-5.5W(I)	10	10	2850	0.75	43.2
93	50WQ20-15-2.2(I)	10	10	2850	0.75	43.2
94	65WQ20-25-4(I)	10	13	2850	1.1	41.6
95	65WQ20-27-4(I)	10	13	2850	1.1	45.3
96	65WQ20-27-4(JY)(I)	10	15	2880	1.5	58.4
97	50WQ20-30-5.5(I)	10	15	2850	1.1	54.7
98	50WQ20-40-7.5(I)	10	18	2880	1.5	47.3
99	65WQ20-60-11(I)	12	10	2850	0.75	43.2
100	65WQ25-9-1.5JY(I)	12	10	2850	0.75	43.2
101	65WQX25-9-1.5	12	10	2850	0.75	43.2
102	50WQ25-10-2.2(I)	12	10	2880	1.5	32.6
103	65WQ25-10-1.5(I)	12	12	2880	1.5	58.4
104	65WQ25-10-1.5W	12	15	2880	1.5	43.7
105	65WQ25-13-2.2JY(I)	12	15	2880	1.5	43.7
106	65WQ25-14-2.2(I)	12	18	2880	1.5	42.9
107	65WQ25-14-2.2W(I)	15	8	2850	1.1	48.8
108	65WQ25-15-3(I)	15	8	2850	1.1	48.8
109	80WQ25-15-2.2/QG(I)	15	10	2880	1.5	51.8
110	65WQ25-18-3(I)	15	10	2850	1.1	54.4
111	65WQ25-18-3(JY)(I)	15	10	2850	1.1	59.2
112	65WQ25-18-3W(I)	15	10	2850	1.1	51.2
113	50WQ25-20-3(I)	15	13	2850	1.1	46.7
114	50WQ25-25-5.5(I)	15	13	2850	1.1	54.7
115	50WQ25-25-4W(I)	15	15	2880	1.5	58.4
116	50WQ25-27-4/QG(I)	15	15	2880	1.5	50.5
117	65WQ25-30-5.5JY(I)	15	15	2880	1.5	49.3
118	65WQ25-31-5.5(I)	15	18	2880	2.2	48.3
119	50WQ25-35-7.5(I)	15	18	2880	2.2	43.7
120	65WQ30-25-5.5(I)	15	18	2880	2.2	44.7
121	65WQ30-25-5.5W(I)	15	20	2880	2.2	50.7
122	65WQ30-54-11JY(I)	15	20	2880	2.2	48.3
123	65WQ30-60-15(I)	15	25	2840	3	50.9
124	65WQ35-7-2.2(I)	15	25	2840	3	50.9
125	65WQ35-9-2.2JY(I)	15	25	2840	3	41.7
126	80WQX35-9-2.2	15	27	2840	3	46.4
127	80WQ35-13-3(I)	15	28	2840	3	49.5
128	80WQ35-13-3(JY)(I)	15	32	2840	4	41.7
129	80WQ35-13-3W(I)	15	32	2840	4	41.7
130	80WQ35-40-11/QG(I)	15	38	2940	5.5	42.5
131	65WQ35-50-11JY(I)	15	40	2940	5.5	38.8
132	80WQ36-10-2.2(I)	18	32	2940	5.5	41.5
133	80WQ36-10-2.2/QG(I)	20	15	2880	2.2	50.1
134	80WQ36-16-4(I)	20	25	2840	4	40.2
135	65WQ37-13-3(I)	20	27	2840	4	48.3
136	80WQ40-8-2.2(I)	20	27	2840	4	48.3
137	80WQ40-8-2.2W(I)	20	30	2940	5.5	41.1
138	65WQ40-10-3(I)	20	40	2940	7.5	49.8
139	80WQ40-10-2.2(I)	20	60	2930	11	43.7
140	80WQ40-10-2.2(JY)(I)	25	9	2850	1.5	59.5
141	80WQ40-12-3/QG(I)	25	9	2880	1.5	37.8
142	80WQ40-15-4(I)	25	10	2880	2.2	60.2
143	80WQ40-15-4(JY)(I)	25	10	2850	1.5	54.7
144	65WQ40-16-4W(I)	25	10	2880	1.5	47.6
145	80WQ40-17-4/QG(I)	25	13	2880	2.2	59.5
146	80WQ40-22-5.5(I)	25	14	2880	2.2	60.3
147	80WQ40-22-5.5(JY)(I)	25	14	2880	2.2	50
148	80WQ40-22-5.5W(I)	25	15	2840	3	56.9
149	80WQ40-30-7.5(I)	25	15	2880	2.2	56.4
150	80WQ40-30-7.5(JY)(I)	25	18	2840	3	56.9
151	65WQ40-50-11(I)	25	18	2840	3	56.9
152	80WQ45-9-2.2(I)	25	18	2840	3	53.6
153	100WQ45-22-7.5(I)	25	20	2840	3	54.5
154	65WQ45-28-7.5W(I)	25	25	2940	5.5	53.7
155	80WQ45-29-7.5/QG(I)	25	25	2840	4	45.6
156	80WQ48-38-11(I)	25	27	2840	4	62.2
157	100WQ50-7-2.2(I)	25	30	2940	5.5	50.6
158	100WQ50-7-2.2(JY)(I)	25	31	2940	5.5	50.6
159	100WQ50-10-3JY(I)	25	35	2940	7.5	47.7
160	100WQ50-10-3W(I)	30	25	2940	5.5	61.3
161	100WQ50-12-4(I)	30	25	2940	5.5	51.1
162	100WQ50-12-4(JY)(I)	30	54	2930	11	52.7
163	80WQ50-12-4W(I)	30	60	2930	15	44.3
164	80WQX50-12-4	35	7	2880	2.2	60.8
165	80WQ50-22-5.5/QG(I)	35	9	2880	2.2	58.2
166	80WQ50-25-7.5(I)	35	9	2880	2.2	41.4
167	80WQ50-29-11JY(I)	35	13	2840	3	55.9
168	65WQ50-55-15(I)	35	13	2840	3	55.9
169	100WQ60-9-3(I)	35	13	2840	3	55.9
170	80WQ60-11-4(I)	35	40	2930	11	44.1
171	80WQ60-11-4/QG(I)	35	50	2930	11	59.1
172	100WQ60-11-4W(I)	36	10	1413	2.2	57.1
173	100WQ60-17-5.5(I)	36	10	1413	2.2	54.7
174	100WQ60-20-7.5(I)	36	16	1413	4	63.5
175	80WQ60-28-11H(I)	37	13	2840	3	56.9
176	80WQ60-35-15H(I)	40	8	2880	2.2	56.4
177	80WQ60-40-18.5H(I)	40	8	2880	2.2	39.6
178	100WQ65-15-5.5(I)	40	10	2840	3	56.9
179	100WQ65-15-5.5(JY)(I)	40	10	2880	2.2	54.7
180	100WQ65-15-5.5W(I)	40	10	2880	2.2	49.3
181	100WQ65-18-5.5(I)	40	12	2840	3	55.9
182	100WQ65-20-7.5(I)	40	15	2840	4	57.9
183	100WQ70-14-5.5(I)	40	15	2840	4	51.4
184	100WQ70-17-7.5W(I)	40	16	2840	4	41.5
185	100WQ70-18-7.5JY(I)	40	17	2840	4	60
186	100WQ75-12-4JY(I)	40	22	2940	5.5	60.6
187	100WQ80-15-7.5(I)	40	22	2940	5.5	60.6
188	100WQ80-25-11(I)	40	22	2940	5.5	54.8
189	100WQ80-35-18.5(I)	40	30	2940	7.5	49.8
190	80WQ80-43-22H(I)	40	30	2940	7.5	58.1
191	150WQ100-7-5.5(I)	40	50	2930	11	57.5
192	150WQ100-10-5.5(I)	45	9	2880	2.2	62
193	150WQ100-10-7.5(JY)(I)	45	22	2940	7.5	59.9
194	100WQ100-15-7.5(I)	45	28	2940	7.5	56.8
195	100WQ100-15-7.5JY(I)	45	29	2940	7.5	54.3
196	150WQ100-17-7.5(I)	48	38	2930	11	54.4
197	100WQ100-22-11H(I)	50	7	2880	2.2	59.5
198	100WQ100-22-11JY(I)	50	7	2880	2.2	49.8
199	100WQ100-29-15H(I)	50	10	2840	3	64.3
200	100WQ100-30-15(I)	50	10	2840	3	43.6
201	100WQ100-30-15JY(I)	50	12	2840	4	61.8
202	100WQ100-32-18.5H(I)	50	12	2840	4	52.8
203	100WQ100-34-22H(I)	50	12	2840	4	56
204	100WQ100-35-22(I)	50	12	2840	4	44.3
205	100WQ100-35-22JY(I)	50	22	2940	5.5	59.2
206	100WQ100-39-22(I)	50	25	2940	7.5	60.7
207	150WQ120-25-15(I)	50	29	2930	11	49
208	150WQ140-10-7.5JY(I)	50	55	2930	15	57.5
209	150WQ140-10-7.5W（I）	60	9	2840	3	57.2
210	150WQ140-14-11W(I)	60	11	1413	4	60
211	150WQ140-24-15JY(I)	60	11	1413	4	61
212	150WQ150-10-7.5(I)	60	11	2840	4	48.3
213	150WQ150-13-11JY(I)	60	17	1437	5.5	50.8
214	150WQ150-16-11(I)	60	20	1450	7.5	54.7
215	150WQ150-19-15JY(I)	60	28	1440	11	54.5
216	150WQ150-20-15(I)	60	35	1440	15	53.8
217	150WQ150-24-18.5(I)	60	40	1460	18.5	61.5
218	150WQ150-25-22JY(I)	65	15	2940	5.5	60.8
219	150WQ150-27-22(I)	65	15	2940	5.5	53.2
220	150WQ150-35-37(I)	65	15	2940	5.5	57.9
221	150WQ180-20-18.5(I)	65	18	2940	5.5	53.2
222	150WQ180-25-22(I)	65	20	2940	7.5	59.9
223	150WQ200-16-18.5	70	14	2940	5.5	60.9
224	150WQ200-16-15W(I)	70	17	2940	7.5	51.6
225	150WQ200-17-18.5JY(I)	70	18	2940	7.5	59.9
226	150WQ200-22-22(I)	75	12	2840	4	52.8
227	150WQ200-28-30(I)	80	15	2940	7.5	64.7
228	150WQ200-35-37(I)	80	25	2930	11	52.8
229	150WQ200-45-55(I)	80	35	1460	18.5	61.4
230	200WQ210-10-11W(I)	80	43	1460	22	54.5
231	200WQ210-11-11JY(I)	100	7	2940	5.5	65
232	150WQ240-7-7.5(I)	100	10	2940	5.5	65
233	150WQ250-14-18.5(I)	100	10	2940	7.5	58.4
234	200WQ250-15-18.5(I)	100	15	2940	7.5	59.9
235	200WQ250-22-30(I)	100	15	2940	7.5	59.9
236	200WQ250-40-55(I)	100	17	2940	7.5	71.2
237	200WQ270-10-11(I)	100	22	1440	11	59.5
238	200WQ270-14-15(I)	100	22	2930	11	64.5
239	150WQ270-16-22(I)	100	29	1440	15	63
240	200WQ270-16-22(I)	100	30	2940	15	61.2
241	200WQ270-28-37(I)	100	30	2930	15	65.2
242	150WQ270-40-55(I)	100	32	1460	18.5	61
243	200WQ300-10-15W(I)	100	34	1460	22	68
244	200WQ300-11-15JY(I)	100	35	1460	22	61.5
245	200WQ300-12-18.5(I)	100	35	1460	22	57.7
246	200WQ300-13-18.5JY(I)	100	39	1460	22	54.7
247	200WQ300-15-22(I)	120	25	2930	15	60.7
248	150WQ300-16-22JY(I)	140	10	2940	7.5	54.9
249	200WQ300-26-37(I)	140	10	2940	7.5	55.5
250	200WQ350-25-37(I)	140	14	1440	11	60.2
251	200WQ350-40-75(I)	140	24	2930	15	70
252	200WQ360-17-30(I)	150	10	2940	7.5	62.3
253	250WQ360-20-30(I)	150	13	1440	11	63
254	250WQ360-28-45(I)	150	16	1440	11	67.6
255	200WQ400-10-22(I)	150	19	1440	15	62
256	200WQ400-15-30(I)	150	20	1440	15	67.3
257	250WQ400-15-30(I)	150	24	1460	18.5	65.8
258	200WQ400-22-37(I)	150	25	1460	22	60.1
259	200WQ400-25-45(I)	150	27	1460	22	61.7
260	200WQ400-30-55(I)	150	35	1470	37	49.5
261	250WQ420-22-37(I)	180	20	1460	18.5	64.5
262	300WQ500-15-37(I)	180	25	1460	22	62.2
263	200WQ500-30-75(I)	200	16	1460	18.5	64.5
264	300WQ800-8-37(I)	200	16	1440	15	68.2
265	250WQ600-9-30(I)	200	17	1460	18.5	58
266	250WQ600-10-22(I)	200	22	1460	22	61.7
267	250WQ600-12-37(I)	200	28	1450	30	65.2
268	300WQ600-18-45(I)	200	35	1470	37	71.7
269	300WQ600-20-55(I)	200	45	1480	55	60.3
270	250WQ600-28-75(I)	210	10	1440	11	65
271	300WQ700-8-22(I)	210	11	1440	11	76
272	300WQ800-9-30(I)	240	7	1450	7.5	60.8
273	300WQ800-11-37(I)	250	14	1460	18.5	65.8
274	300WQ800-12-45(I)	250	15	1460	18.5	65.8
275	300WQ800-20-75(I)	250	22	1450	30	61.1
276	300WQ900-13-45(I)	250	40	1480	55	63.5
277	300WQ900-16-55(I)	270	10	1440	11	73.4
278	350WQ960-5.5-22(I)	270	14	1440	15	75.1
279	350WQ960-7-30(I)	270	16	1460	22	68.3
280	350WQ1100-8-37(I)	270	16	1460	22	68.3
281	400WQ1200-16-75(I)	270	28	1470	37	56.6
282	400WQ1600-6.5-45(I)	270	40	1480	55	60.3
283	400WQ1600-9-55(I)	300	10	1440	15	62.7
284	500WQ2000-9-75(I)	300	11	1440	15	67
285	40WQ/H5-8-0.37	300	12	1460	18.5	65.8
286	40WQ/H6-12-0.55	300	13	1460	18.5	67
287	50WQ/H10-12-0.75	300	15	1450	22	61.2
288	50WQ/H10-16.5-1.1	300	16	1460	22	70
289	50WQ/H10-20-1.5	300	26	1470	37	59
290	50WQ/H10-25-2.2	350	25	1470	37	63
291	50WQ/H15-30-3	350	40	1480	75	66
292	50WQ/H20-7-0.75	360	17	1450	30	61.2
293	50WQ/H20-10.5-1.1	360	20	1460	30	64.9
294	50WQ/H20-14-1.5	360	28	1470	45	64.1
295	50WQ/H20-31-4	400	10	1450	22	61.2
296	50WQ/H20-42-5.5	400	15	1450	30	61.2
297	50WQ/H30-10-1.5	400	15	1460	30	64.9
298	50WQ/H30-14-2.2	400	22	1470	37	62.2
299	65WQ/H30-19-3	400	25	1470	45	64.7
300	65WQ/H40-22-4	400	30	1480	55	63.5
301	65WQ/H40-30-5.5	420	22	1470	37	72.5
302	65WQ/H40-38-7.5	500	15	1450	37	64.2
303	80WQ/H50-10-2.2	500	30	1480	75	66
304	80WQ/H55-11-3	548.2	18.3	1450	37	73
305	80WQ/H55-16-4	600	9	1460	30	48.5
306	80WQ/H55-20-5.5	600	10	983	22	60
307	80WQ/H55-26-7.5	600	12	1470	37	60.7
308	100WQ/H80-8-3	600	18	1470	45	62.2
309	100WQ/H80-11-4	600	20	1450	55	60.5
310	100WQ/H130-10-5.5	600	28	1480	75	65
311	100WQ/H150-11-7.5	700	8	983	22	70.5
312	25ZW(F)8-18	800	9	983	30	71
313	32ZW(F)5-20	800	11	983	37	67.3
314	32ZW(F)8-18	800	12	1470	45	66
315	32ZW(F)10-20	800	20	1450	75	68.5
316	32ZW(F)10-30	900	13	983	45	70
317	40ZW(F)10-20	900	16	983	55	74
318	40ZW(F)15-18	960	5.5	734	22	71
319	40ZW(F)15-28	960	7	983	30	70.1
320	40ZW(F)20-13	1100	8	983	37	73
321	50ZW(F)10-20	1200	16	983	75	72.2
322	50ZW(F)15-18	1600	6.5	983	45	69
323	50ZW(F)15-28	1600	9	983	55	71.3
324	50ZW(F)20-13	2000	9	983	75	72.8

补充说明

暂无勾选的产品信息

联系信息

产品：*

您的单位：*

您的姓名：*

联系电话：*

常用邮箱：

国家/地区*

详细地址：

补充说明：

验证码：*

还有疑问？

我们的专业团队随时准备为您提供帮助，立即联系我们获取专属解决方案

立即咨询 15113233332
